Shells on nodes

Some problems aren’t in a container but on the node under it: the kubelet, the container runtime, a full disk, the node’s network. A node’s Shell tab opens a shell there, like kubectl debug node. Lumovi starts a short-lived privileged pod on the node, opens a shell through it, and deletes the pod when the shell ends. You don’t need SSH access to the node: your RBAC, and the Pod Security of the namespace the pod runs in, decide whether you can.

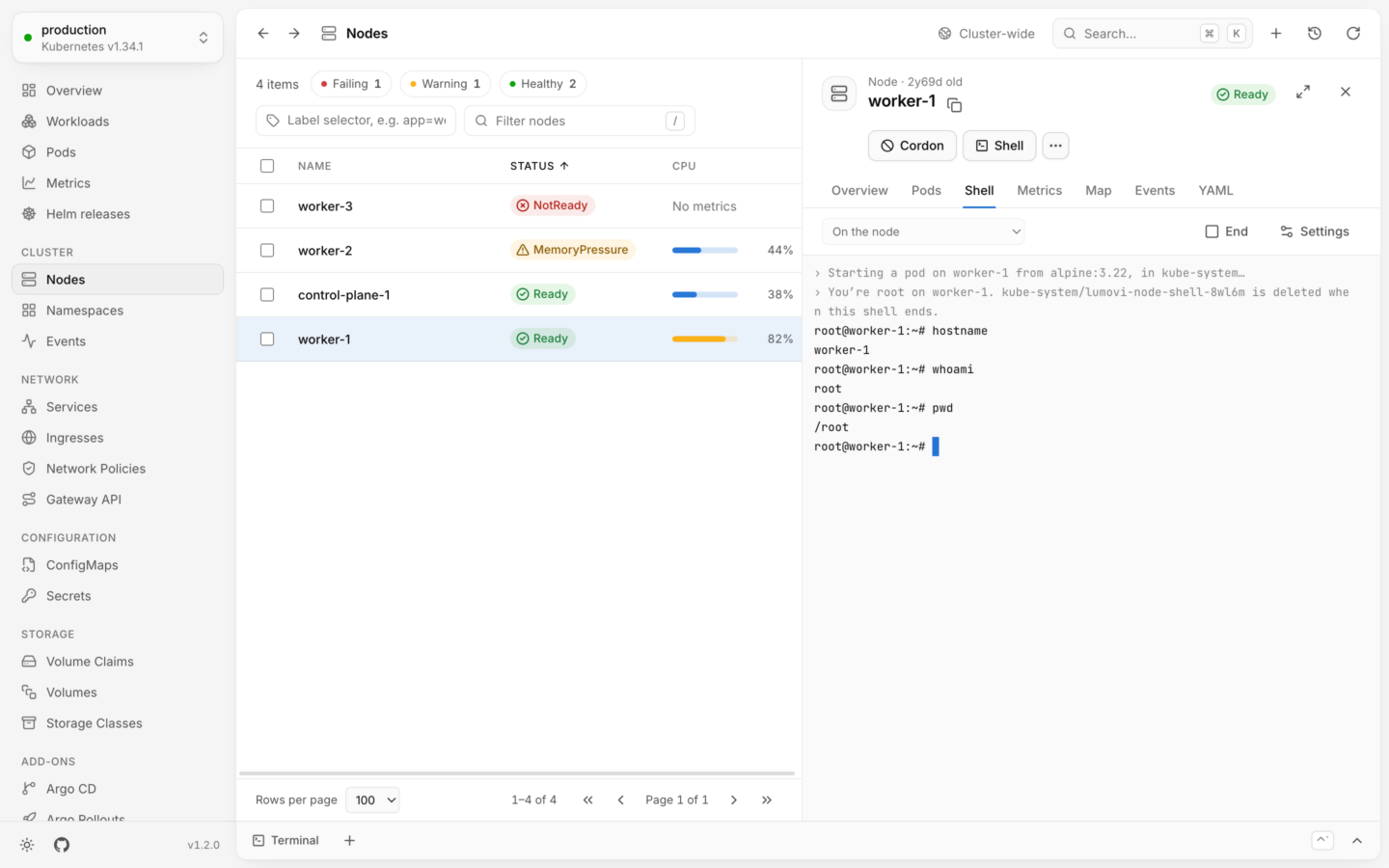

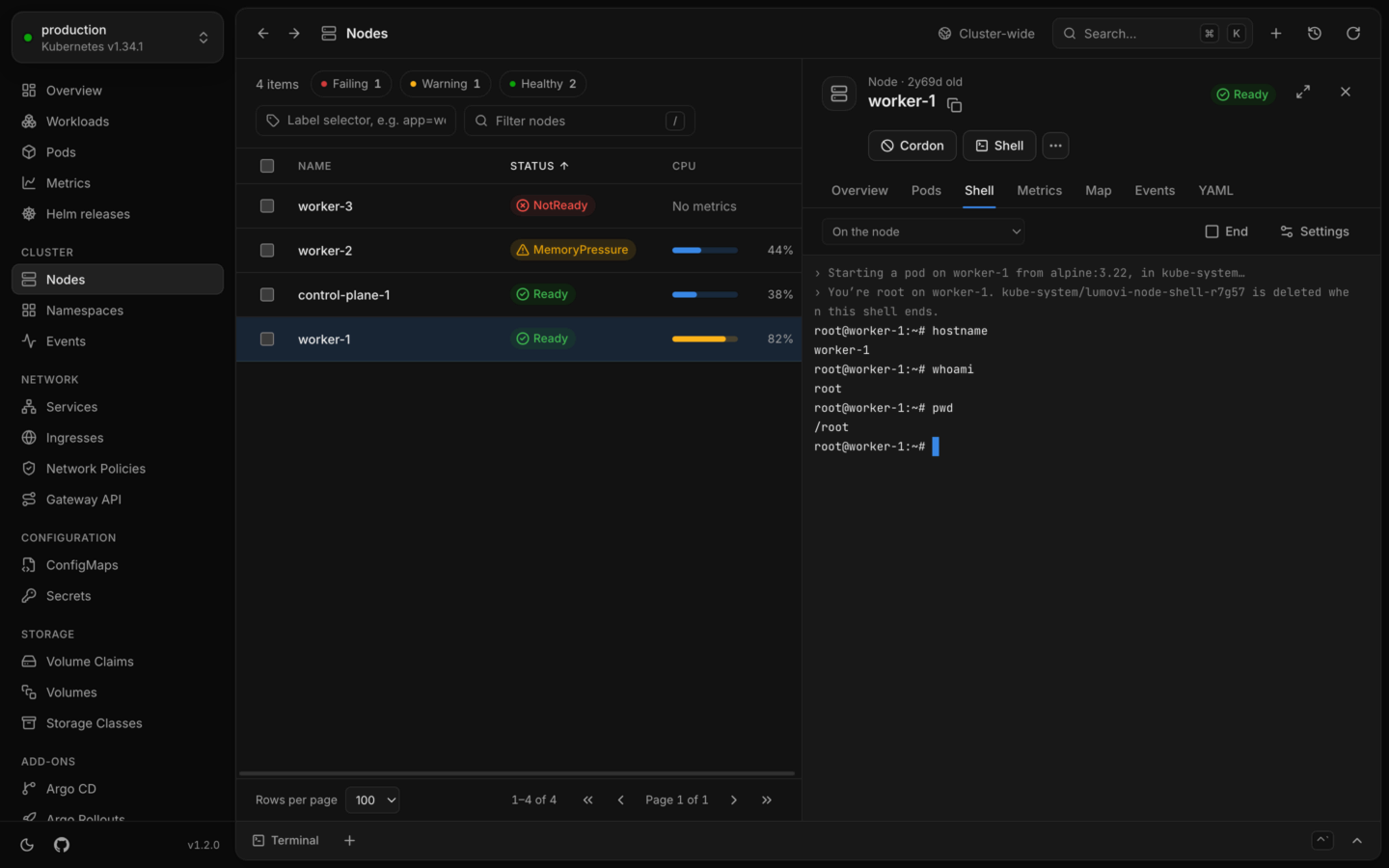

The Shell tab of node worker-1, set to On the node: Lumovi started a pod on worker-1 from alpine:3.22 in kube-system, and the shell runs as root on worker-1, where hostname, whoami and pwd answer worker-1, root and /root. — A shell on a node itself, as root, through a pod Lumovi starts there and deletes when the shell ends.

For a shell in a container, see Shells and debug containers.

Open a shell on a node

Open the node

Find it in Nodes, and open it.

Choose Shell

Choose Shell at the top of the panel, or open the Shell tab. Nothing starts yet: the tab says what will happen first.

Pick where the shell runs

On the node, the default, or In the pod, with the node’s files, from the menu at the top of the tab. See Where the shell runs.

Start shell

Choose Start shell. The terminal shows each step as it happens, and the shell opens once the node has started the pod.

Before you start, the tab says what Lumovi will create:

	Shows
Pod	Where it’s created, and its name: `kube-system/lumovi-node-shell-…` by default
Image	What it runs: `alpine:3.22` by default
Access	Privileged, with the node’s processes, network and files

It also warns you, though you can still start the shell:

When	It says
The node isn’t ready	node isn’t ready: its kubelet may not start the pod.
Your account can’t delete pods in the namespace	Your account can’t delete pods in namespace: the pod stays until its 12-hour deadline.

Then the terminal says what’s happening, in dim lines before the shell’s own:

› Starting a pod on worker-1 from alpine:3.22, in kube-system…
› You’re root on worker-1. kube-system/lumovi-node-shell-x7k2p is deleted when this shell ends.

Lumovi waits up to two minutes for the node to pull the image and start the pod. The terminal works like a container’s. See In the terminal. End, at the top of the tab, ends the shell and deletes its pod.

Where the shell runs

Where	What you get
On the node	Root on the node. The shell runs in the node’s own mount, UTS, IPC, network and PID namespaces, through `nsenter`, so you see the node’s files, tools, processes and network as the node does. It’s the node’s `bash` when it has one, and `sh` otherwise, as a login shell in root’s home directory.
In the pod, with the node’s files	A login shell from the pod’s image, starting in `/host`, where the node’s files are. The pod shares the node’s processes and network too. This is for nodes without a shell of their own, like Talos and Bottlerocket.

What Lumovi runs in the pod. On the node, it first checks that the image has nsenter, so a missing one says so instead of looking like a node without a shell:

env TERM=xterm-256color nsenter --target 1 --mount --uts --ipc --net --pid -- sh -c 'cd ~ 2>/dev/null; command -v bash >/dev/null 2>&1 && exec bash -l || exec sh -l'

env TERM=xterm-256color sh -c 'cd /host && exec sh -l'

Where a shell runs can’t change while it’s open: choose End first.

The pod

Lumovi creates a pod named lumovi-node-shell- and five random characters, in the node shells’ namespace (kube-system unless you choose another). It’s:

Privileged, sharing the node’s process, network and IPC namespaces, with the node’s root filesystem mounted at /host.
Placed on the node by name rather than scheduled, and it tolerates every taint, so cordoned and tainted nodes get it too.
Without a service account token: it has no access to the API of its own.
Labeled app.kubernetes.io/managed-by: lumovi and app.kubernetes.io/component: node-shell, with the node’s name in its lumovi.dev/node annotation.

The pod Lumovi creates

For worker-1, with the default settings. The API server adds the five random characters to its name.

apiVersion: v1
kind: Pod
metadata:
  generateName: lumovi-node-shell-
  namespace: kube-system
  labels:
    app.kubernetes.io/managed-by: lumovi
    app.kubernetes.io/component: node-shell
  annotations:
    lumovi.dev/node: worker-1
spec:
  nodeName: worker-1
  tolerations:
    - operator: Exists
  hostPID: true
  hostNetwork: true
  hostIPC: true
  restartPolicy: Never
  terminationGracePeriodSeconds: 0
  activeDeadlineSeconds: 43200
  automountServiceAccountToken: false
  enableServiceLinks: false
  containers:
    - name: shell
      image: alpine:3.22
      command: ['sleep', '43200']
      securityContext:
        privileged: true
      volumeMounts:
        - name: host
          mountPath: /host
  volumes:
    - name: host
      hostPath:
        path: /

How long it lives

As long as the shell. Lumovi deletes the pod at once when the shell ends, which it does when:

You choose End, or the shell exits.
The connection to the pod closes.
You open another of the panel’s tabs, open something else, or close the panel.
You quit the desktop app, which waits a few seconds for the pod to go, or leave the page in a browser.

The terminal says what became of it: Its pod was deleted. If Lumovi couldn’t delete it, because your account can’t delete pods there or the API server didn’t answer, it says so instead, also when the shell failed to start:

Lumovi couldn’t delete its pod, kube-system/lumovi-node-shell-x7k2p: why. It stops by itself within 12 hours.

That’s the pod’s deadline. Its container only sleeps for 12 hours, and Kubernetes stops the pod then too (activeDeadlineSeconds), even when Lumovi isn’t there to delete it, because the desktop app quit before it could, say. A stopped pod stays in the namespace until it’s deleted. To find the node shells’ pods:

kubectl get pods -n kube-system -l app.kubernetes.io/component=node-shell

Settings for each cluster

Choose Settings at the top of the Shell tab. The Node shells dialog says where the pod is created, and what it runs:

Field	What it is
Namespace	Where the pod is created. Its Pod Security must allow privileged pods, as `kube-system`’s usually does. A namespace’s name: lowercase letters, digits and `-`.
Image	What the pod runs. It needs a shell (`sh`), and `nsenter` for shells on the node itself: `alpine` has both. Where nodes can’t pull from Docker Hub, use a copy in your own registry, like `registry.example.com/library/alpine:3.22`.

Save keeps them for this cluster, once the namespace is a namespace’s name and the image has no spaces. The next shell uses them; one that’s open keeps going. Once you’ve set your own, Use the defaults: kube-system, alpine:3.22 goes back to the defaults. The desktop app keeps these settings with its others, by kubeconfig context. In a browser, Lumovi in your cluster keeps them in that browser, for each cluster: another browser, or another person, has its own.

The equivalent command

The dialog shows the kubectl debug node command that does much the same, for where the shell runs:

kubectl debug node/worker-1 -it --image alpine:3.22 --profile sysadmin -n kube-system --context dev -- nsenter --target 1 --mount --uts --ipc --net --pid -- sh -l

In the pod, the command ends in -- sh -l. Unlike Lumovi, kubectl debug node leaves its pod behind when the shell ends: delete it yourself.

In your cluster: the administrator sets the namespace and image everyone starts with, with the chart’s nodeShell.namespace and nodeShell.image (LUMOVI_NODE_SHELL_NAMESPACE and LUMOVI_NODE_SHELL_IMAGE), and can turn node shells off for everyone with nodeShell.enabled: false (LUMOVI_NODE_SHELL=off). In a fleet, these are every cluster’s. Each person can still choose another namespace and image for themselves, kept in their browser, and Use the defaults goes back to the server’s. The pod is created, and the shell opened, as the person signed in, with their RBAC: not as Lumovi’s service account. When Lumovi itself stops, after an upgrade say, it waits up to 10 seconds for open node shells’ pods to be deleted. See Helm values and Security.

What it needs

Permissions

All in the node shells’ namespace:

To	Needs
Create the pod	`create` on `pods`
See it start	`get` on `pods`
Open the shell in it	`create` on `pods/exec`
Delete it when the shell ends	`delete` on `pods`. Without it, the pod stays until its 12-hour deadline.

Lumovi asks the cluster before you start. Without create or get on pods, or create on pods/exec, the tab says No node shell access: Your account can’t create pods in kube-system, read them, or open shells in them. A node shell needs all three: ask for them, or choose another namespace in its settings. See Permissions.

A Role for node shells

Bind it to the people who may be root on the cluster’s nodes, in the namespace node shells run in:

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: lumovi-node-shell
  namespace: kube-system
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "get", "delete"]
  - apiGroups: [""]
    resources: ["pods/exec"]
    verbs: ["create"]

Creating pods in a namespace that allows privileged pods is enough to be root on any node. Give it only to those who should be.

Pod Security

The namespace’s Pod Security level must be privileged: a namespace whose pod-security.kubernetes.io/enforce label is baseline or restricted refuses the pod. kube-system usually allows privileged pods. Policy engines, like Kyverno or Gatekeeper, can refuse it too.

The image

The default, alpine:3.22, comes from Docker Hub. It has sh and nsenter, which shells on the node need. A shell in the pod needs only sh. Where nodes can’t pull from Docker Hub, or shouldn’t, copy the image to your own registry and set it in Settings.

When it doesn’t start

Whenever a shell can’t start, Lumovi deletes its pod, and says why in words that say what to do. Most messages come with Settings and Try again: after you save the settings, the tab goes back to the start.

The namespace doesn't allow privileged pods

namespace doesn’t allow privileged pods: its Pod Security level is stricter than privileged. Choose a namespace that allows them in the node shell’s settings.Choose Settings, and a namespace whose Pod Security level is privileged, like kube-system. See Pod Security.

Lumovi couldn't create the pod

Lumovi couldn’t create the node shell’s pod: what Kubernetes saidKubernetes refused it for another reason, in its own words: your account can’t create pods there, a quota is full, or a policy refused it. Fix what it names, or choose another namespace in Settings.

The node can't pull or start the image

node couldn’t start image (ErrImagePull): why. Choose an image it can pull in the node shell’s settings.The reason in brackets is the container’s: ErrImagePull, ImagePullBackOff, InvalidImageName, ErrImageNeverPull, CreateContainerConfigError or CreateContainerError. Check the image’s name, or choose a copy in a registry the node can reach, in Settings.

The node refused the pod

node refused the node shell’s pod (OutOfpods): whyThe node’s kubelet turned the pod down, and the reason and message in it are the kubelet’s. OutOfpods, for one, means the node already runs as many pods as it can.

The node never starts the pod

node didn’t start the node shell’s pod in 120 seconds: its kubelet may not be running, or image may take long to pull.Lumovi waits six times LUMOVI_REQUEST_TIMEOUT_MS, two minutes unless it’s set. Check the node’s status and its conditions in Nodes: a node that isn’t ready may never start the pod. A large image may only need longer: Try again once the node has pulled it.

The node has no shell of its own

node has no shell of its own. Talos and Bottlerocket nodes, say, have none. The pod’s shell has the node’s files under /host.Choose Shell in the pod for a shell in the pod instead, with the node’s files under /host. Lumovi says this only when a shell on the node ends that way before you’ve typed anything: afterwards, the code is the last command’s.

The image has no nsenter

image has no nsenter. A shell on the node itself runs the image’s nsenter: alpine has it. (A shell in the pod doesn’t need it.)Its pod was deleted. Choose another image in Settings, like alpine, then Try again, or choose In the pod, which doesn’t need nsenter.

The image has no shell

image has no shell. A node shell’s image needs sh, and nsenter for shells on the node itself: alpine has both.Distroless images, say, have none. Choose another image in Settings, then Try again.

When it ends

Message	Means
The shell exited with code N.	You exited, or the shell did.
The connection to the container closed.	The pod stopped, or the network dropped.

Under it, Its pod was deleted., or why it couldn’t be. Start again starts a new shell, in a new pod.

When a node shell isn’t offered

You see	Why	What to do
Shells are off	The cluster is read-only in Lumovi: a node shell can change the node. The Shell button is disabled too.	Allow changes to the cluster, if you mean to.
No node shell access	Your account can’t create pods in the node shells’ namespace, read them, or open shells in them.	Ask for them, or choose another namespace in Settings. See Permissions.
Node shells need a Linux node	The node runs Windows.	None: see Windows nodes.
Node shells are off	The Lumovi server you use turned them off, with `nodeShell.enabled: false`.	Ask its administrator.

Windows nodes

Windows nodes can’t have a node shell: their containers can’t share a node’s namespaces the way a node shell needs. Their Shell tab says Node shells need a Linux node.

Read-only clusters

A read-only cluster turns shells off, on nodes too. The Shell tab says Shells are off, as the cluster is read-only in Lumovi and a node shell can change the node. It isn’t only the tab: the part of Lumovi that talks to the cluster refuses to start one. See Read-only mode.

Security

A shell on a node is root on that node, and so is a shell in its pod: it can read the node’s files, the kubelet’s credentials, and the Secrets and volumes of every pod on the node, and change all of them. Lumovi gives nobody more than their RBAC allows: whoever can open a node shell could create the same pod with kubectl. To keep people from it, let them create pods only in namespaces that don’t allow privileged pods. See Security in your cluster.
